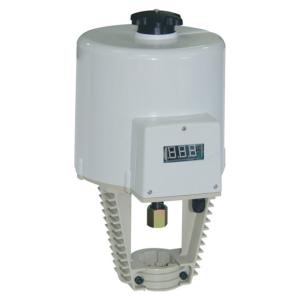

Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz

Name: Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
Brand: Hengxiang
Price: 1 USD

Quality Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz for sale

Brand Name : Hengxiang

Model Number : DFQ-XFK, DFQ-XMF

Certification : SCOC

Place of Origin : China

MOQ : 300 Sets

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50000 PCS/Month

Delivery Time : 30 Working days

Packaging Details : Carton

Product Name : Motorized zone valve

Material : Aluminum Alloy

Weight : 4.5kg

Fluid Temperature : <95℃

Warranty : 1 year

Thrust : 1000N

Power : Electric, 24VAC±10% 50/60Hz

Customized support : OEM, ODM

Contact Now

Refrigeration Hvac Valve Actuator Electrically Controlled Valve For Air Conditioner Actuator Suitable for Siemens

Product Introduction:

DQF-X series motorised valve actuator is matched with 2,3-way motorised valve to adjust the medium flow.It's widely used in central air conditioning system, heating system and other occasions to meet the user from simple single-room temperature control to complex building automatic control requirements. It can achieve the required ambient temperature,obtain a comfortable environment and save energy through flow control.

Product Features:

1. Easy installation.

2. Terminal limit switch

3. Connecting rod is unnecessary

4. Forward and reverse action

5 .Accurate valve positioning

6. Synchronous motor

9. With manual operator

10. Corrosion protection design

11. Maintenance free

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Type and Size:

Model No.	DFQ-XFM	DFQ-XFM-485	DFQ-XFK
Power	24VAC±10% 50/60Hz
Power consumption	20.1W when frequency is 50Hz 26.0W when frequency is 60Hz		20.5W when frequency is 50Hz 27.6W when frequency is 60Hz
Input signal	0(2)~10V,0(4)~20mA optional		24VAC
Signal feedback	0(2)~10V	0(2)~10V, 0(4)~20mA optional	24VAC
Thrust	5000N
Journey	40mm
Journey time	240 seconds when 50Hz 200 seconds when 60Hz
Material	Gear: formaldehyde, nylon
	Lower plate of reducer: galvanized steel
	Bracket: die-cast aluminum alloy
	Housing: flame retardant ABS engineering plastic
Temperature	Ambient temperature: -10 ~ +50ºC Storage temperature: -40 ~ +50ºC
Protection Class	IP54
Humidity	1%-95% RH no dew
Fluid temperature	<150ºC
Weight	4.25kg

Refrigeration Hvac Valve Actuator Electrically Controlled 50Hz
